Product Summary

The 30402 is a Power Divider.

Parametrics

30402 specifications: (1)N-Way: 2; (2)Low Frequency (GHz): 0.820; (3)High Frequency (GHz): 0.915; (4)VSWR Input: 1.3:1; (5)VSWR Output: 1.2:1; (6)Insertion Loss dB (max), Excluding Combination Loss: 0.5; (7)Insertion Loss dB (max), Including Combination Loss: 3.5; (8)Isolation dB (min): 20; (9)Amplitude Balance (max dB): 0.2; (10)Phase Balance (Max in Deg.): +/- 3.0; (11)Average Power (Combiner): 40 W; (12)Peak Power (Combiner): 1.3 kW; (13)Average Power (Divider): 80 W; (14)Peak Power (Divider): 3 kW; (15)Maximum Weight (oz): 4.9; (16)Maximum Weight (gr): 140.

Features

30402 features: (1)Wireless Communications PCS and Cellular Coverage; (2)Wireless Broadband - 800 to 2500 MHz; (3)2-Way thru 16-Way Models; (4)High Isolation; (5)Excellent Phase and Amplitude Balance.

Diagrams

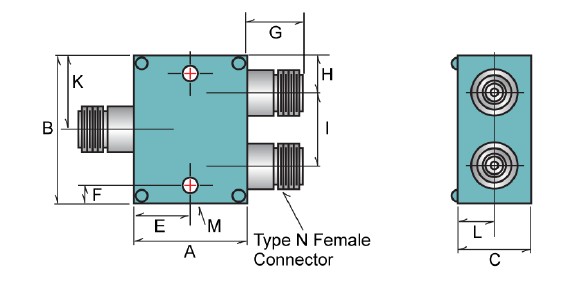

30402 dimensions
